1700 WOOD STOVE

1700 WOOD STOVE

$2,199.00

SKU: OB01700 Category: Tags: , ,

Description

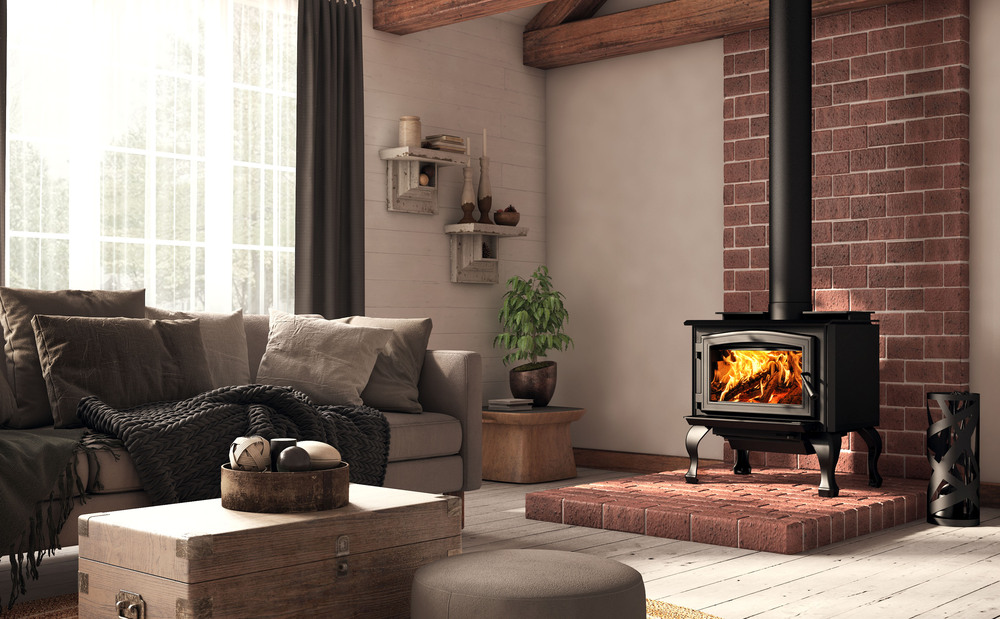

Designed to meet the needs of smaller spaces, the Osburn 1700 combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a stainless steel heat shield added to the C-Cast firestop, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.

Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Exceeding air quality regulations with emissions as low as 2.4 g/h, the Osburn 1700’s efficiency will save you time and money.

Discover the additional qualities of the Osburn 1700 wood stove

APPROVED FOR THE ISLAND OF MONTREAL

Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

96% of the last 35 product owners who have registered their warranty are satisfied with this product.



Additional information

Heating area

500 – 1, 800 Ft2
Maximum heat output

000 BTU/h (19 kW), 65
Fuel Type

Dry cordwood (16" recommended)
Overall firebox volume-ft³

1.9
EPA loading volume-ft³

1.44
Maximum burn time ()

6 h
75 % (LHV) (5)

Optimum overall efficiency (6)(7)
78 %

Optimum heat transfer efficiency (8)
74 %

Average particulate emissions rate (9)
1.26 g/h

Average CO (10)
58 g/h

Combustion technology
Non-catalytic

High-efficiency certified appliance
Yes, EPA 2020 approved

Maximum log length
18"

Log positioning
Loading over width

Chimney diameter
15'

Baffle type
C-Cast or equivalent

Approved for an alcove installation
Yes, with fresh air intake

Shipping Weight
331 lb (150 kg)

Door type
Ceramic glass

Glass surface – dimensions (Width X Height)
15 3/4" x 9 3/8"

Glass air-wash system
30 3/8"

Overall dimension (Width)
24 7/8"

Overall dimension (Depth)
23 1/4"

Door opening – dimension (Height)
8 3/4"

Door opening – dimension (Width)
17 1/4"

Firebox – dimension (Height)
11 7/8"

Firebox – dimension (Width)
19 5/8"

Firebox – dimension (Depth)
13 1/2"

Firebox lined with refractory bricks for better heat distribution
Yes

Model
Legs or pedestal

Steel thickness – body
3/16"

Steel thickness – top
5/16"

USA standard (emissions)
EPA

Canadian Standard (emissions)
CSA B415.1-10

USA standard (safety)
UL 1482, UL 737

Canadian standard (safety)
ULC S627

Tested and listed as per applicable standards
Limited lifetime

Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
Single wall pipe

Double wall pipe
Clearance – back wall

14 1/2"
6"

Clearance – corner
12'

6"
Clearance – side wall

10"
10"

Clearance – top (measured from the platform on which the appliance is installed)**
84"

84"
