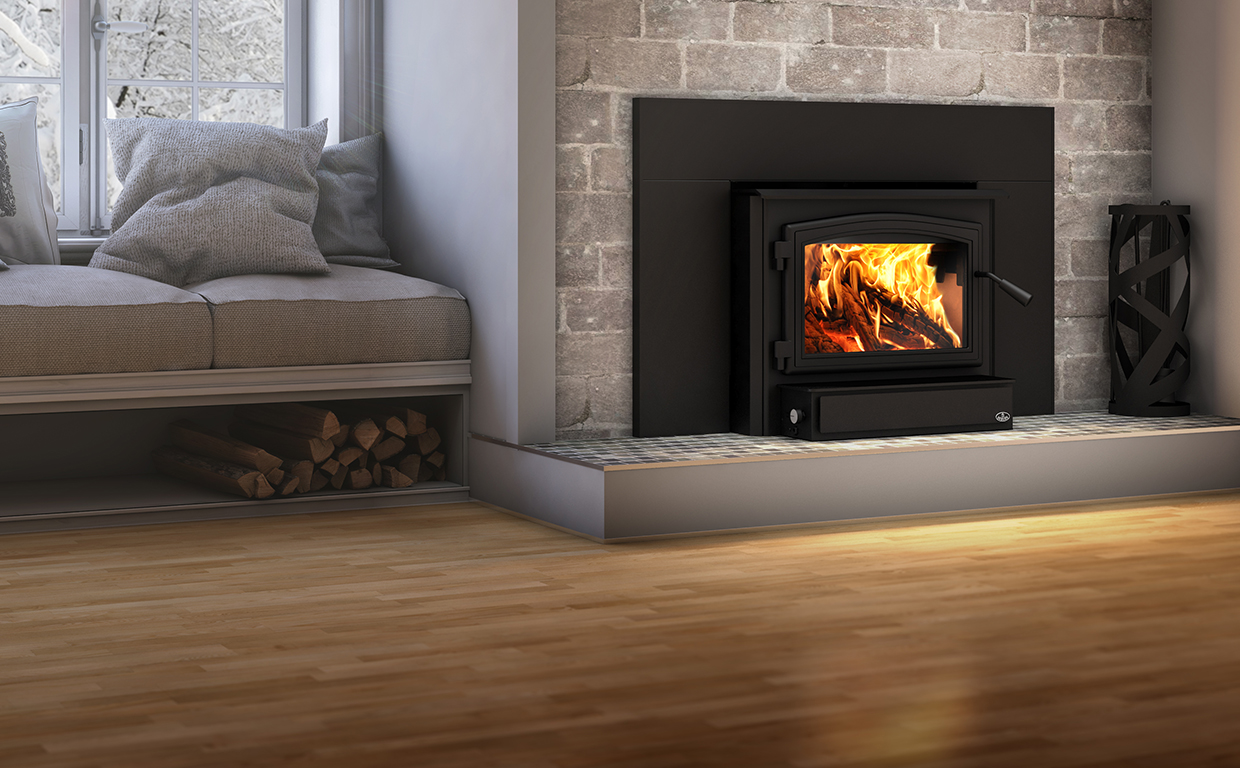

2000 WOOD INSERT

2000 WOOD INSERT

$2,999.00

SKU: OB02016 Category: Tags: , ,

Description

The new standard lowering the fine particulate emission threshold will be conquered by the recent certification of the Osburn 2000 wood burning stove. This revamped version now offers a particulate emissions rate of 2.3 g/h, a maximum heat output of 75,000 BTU/h and 79% optimum efficiency. This insert still has a 2.4 ft3 combustion chamber and a 144-CFM variable speed fan that is strategically positioned to redistribute heat throughout the room.

Designed to receive an optional faceplate that can cover a masonry hearth up to 32 inches (81 cm) high and 50 inches (127 cm) wide. A steel door overlay is available in black or brushed nickel as well as faceplate trims. Look no further, treat yourself to Osburn’s legendary quality!

Discover the additional qualities of the Osburn 2000 wood insert

APPROVED FOR THE ISLAND OF MONTREAL

Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

96% of the last 50 product owners who have registered their warranty are satisfied with this product.



Additional information

Heating area

100 Ft2, 500 – 2
Maximum heat output

000 BTU/h (22.0 kW), 75
Fuel Type

Dry cordwood (16" recommended)
Overall firebox volume-ft³

2.4
EPA loading volume-ft³

1.95
Maximum burn time ()

8 h
77 % (LHV) (5)

Optimum overall efficiency (6)(7)
79 %

Optimum heat transfer efficiency (8)
76%

Average particulate emissions rate (9)
2.3 g/h

Average CO (10)
69 g/h

Combustion technology
Non-catalytic

High-efficiency certified appliance
Yes, EPA 2020 approved

Maximum log length
20"

Log positioning
Loading over width

Chimney diameter
6"

Type of chimney
12'

Baffle type
C-Cast or equivalent

Approved for a mobile home installation
No

Shipping Weight
432 lb (196 kg)

Door type
Ceramic glass

Glass surface – dimensions (Width X Height)
17 1/8" X 10 1/4"

Glass air-wash system
144

Overall dimension (Height)
23 1/8"

Overall dimension (Width)
28 3/8"

Overall dimension (Depth)
26 3/8"

Door opening – dimension (Height)
17 1/2"

Firebox – dimension (Height)
11 7/8"

Firebox – dimension (Width)
21"

Firebox – dimension (Depth)
16 3/4"

Firebox lined with refractory bricks for better heat distribution
Yes

Steel thickness – body
3/16"

Steel thickness – top
5/16"

Fireplace opening – minimum (Height)
23 3/8"

Fireplace opening – minimum (Width)
28 7/8''

Fireplace opening – minimum (Depth)
15 3/4"

USA standard (emissions)
Comply with EPA 2020

Canadian Standard (emissions)
CSA B415.1-10

USA standard (safety)
UL 1482, UL 737

Canadian standard (safety)
ULC S628

Tested and listed as per applicable standards
Limited lifetime

Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
United-States

Clearance – top (measured from the platform on which the appliance is installed)**
84"

84"
9"

Clearance – combustible top mantle to unit
27"

27"
16"

Clearance – minimum floor protection in front of the appliance
18"

16''
