3300 WOOD STOVE

$3,199.00

SKU: OB03300 Category: Tags: , ,

Description

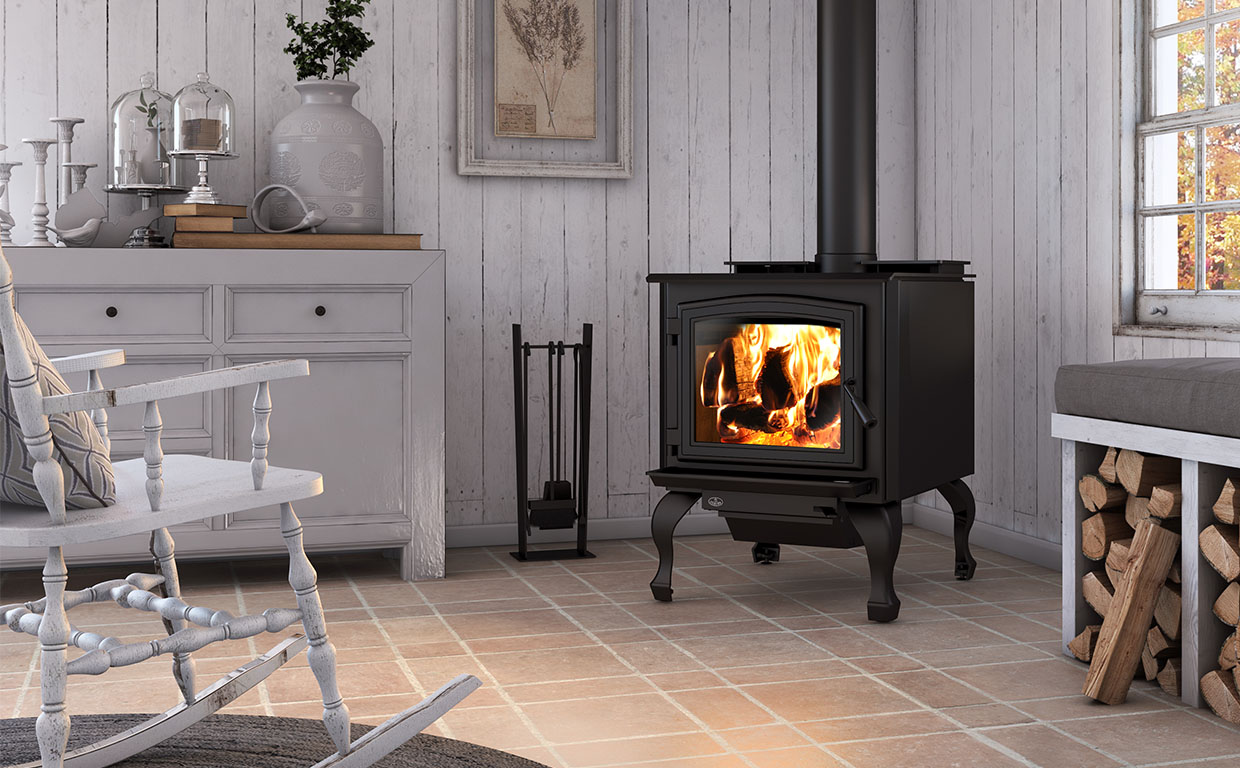

The Osburn 3300 represents the essence of eco-friendly and efficient heating. With an emission rate of 0.95 g/h, this non-catalytic wood stove is among the cleanest on the market and represents an environmentally friendly source of energy. This north-south loading model will keep your family warm all night long, even in very cold weather, thanks to its power of 90,000 BTU/h.

The design of the heater is flawless and enhanced by a set of high density bricks, a stainless steel heat shield added to the C-Cast baffle, a new cast iron door mold, an integrated ash drawer, a top heat deflector as well as decorative side panels.

This new generation wood stove offers a multitude of configuration options. In addition to the traditional or straight legs and the door overlay available in black or brushed silver, you can choose a pedestal, a rigid spark arrester, a blower with thermodisc and a glass ash lip according to your needs. Let yourself be inspired and reinvent your interior comfort!

Discover the additional qualities of the Osburn 3300 wood stove

APPROVED FOR THE ISLAND OF MONTREAL

Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

100% of the last 35 product owners who have registered their warranty are satisfied with this product.



Additional information

Heating area

300 Ft2, 900 – 2

Maximum heat output

000 BTU/h (26.4 kW), 90

Fuel Type

Dry cordwood (16" recommended)

Overall firebox volume-ft³

3.3

EPA loading volume-ft³

2.67

Maximum burn time ()

10 h

76.6 % (LHV) (5)

Optimum overall efficiency (6)(7)

78 %

Optimum heat transfer efficiency (8)

74 %

Average particulate emissions rate (9)

0.95 g/h

Average CO (10)

61.3 g/h

Combustion technology

Non-catalytic

High-efficiency certified appliance

Yes, EPA 2020 approved

Maximum log length

20"

Log positioning

Loading over depth

Chimney diameter

15'

Baffle type

C-Cast or equivalent

Approved for an alcove installation

Yes, with fresh air intake

Shipping Weight

525 lb (238 kg)

Door type

Ceramic glass

Glass surface – dimensions (Width X Height)

14 1/2" X 11 5/8"

Glass air-wash system

34"

Overall dimension (Width)

24 1/4"

Overall dimension (Depth)

30 1/2"

Door opening – dimension (Height)

16"

Firebox – dimension (Height)

14 1/8"

Firebox – dimension (Width)

19"

Firebox – dimension (Depth)

21"

Firebox lined with refractory bricks for better heat distribution

Yes

Model

Legs or pedestal

Steel thickness – body

3/16"

Steel thickness – top

5/16"

USA standard (emissions)

EPA

Canadian Standard (emissions)

CSA B415.1-10

USA standard (safety)

UL 1482,UL 737

Canadian standard (safety)

ULC S627

Tested and listed as per applicable standards

Limited lifetime

Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)

Single wall pipe

Double wall pipe

Clearance – back wall

14 1/2"

6"

Clearance – corner

10"

8"

Clearance – side wall

12"

12'

Clearance – top (measured from the platform on which the appliance is installed)**

84"

84"
