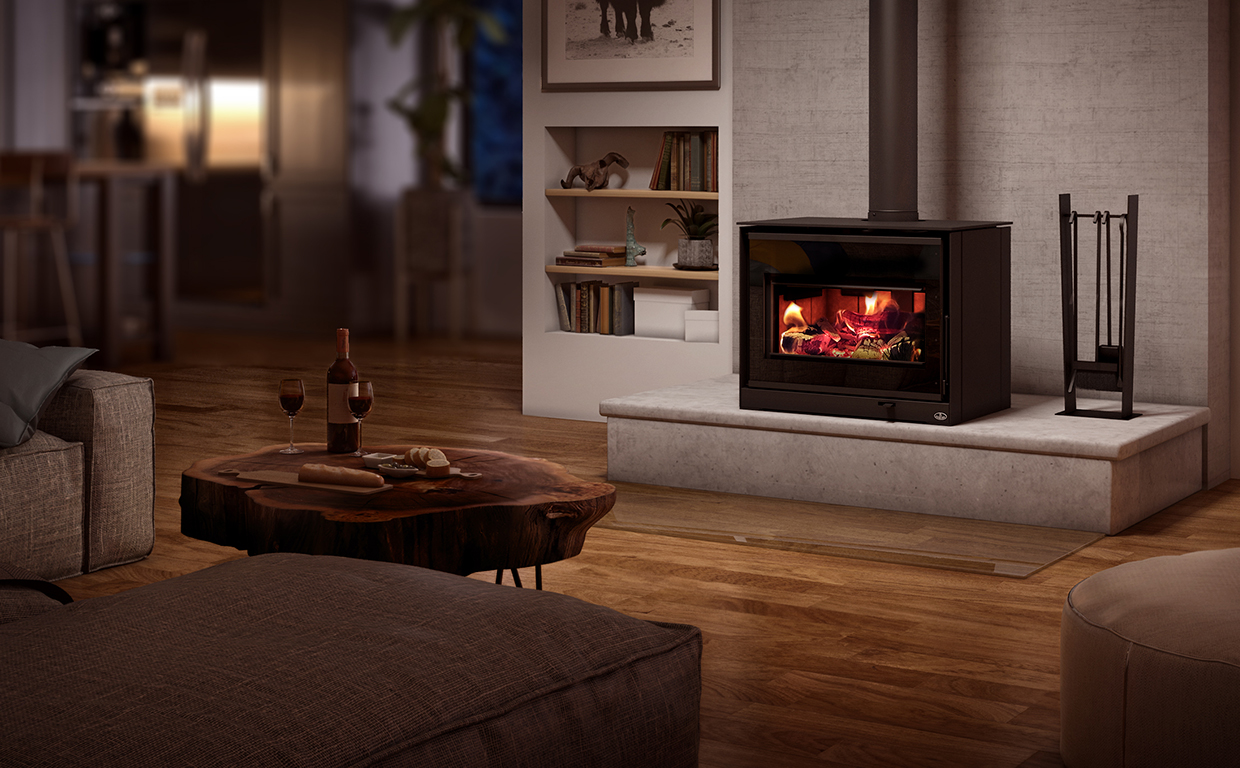

INSPIRE 2000 WOOD STOVE

$3,499.00

SKU: OB02042 Category: Tags: , ,

Description

Are you interested in getting off the beaten path? The Inspire offers a style that will surely withstand variable trends with these pure lines of balanced proportions, allowing the brand  Osburn to easily compare to European-style products. This more contemporary look is available on steel base, soapstone or even a minimalist base for those who prefer to place the unit directly on a non-combustible podium. Equipped with a 2.3 cubic feet firebox and an outside air intake, this unit will meet the requirements of domestic energy standards, not to mention that a mobile home installation is permitted.

 The Inspire meets EPA requirements with emissions as 2.3 g/h and complies with the most stringent North American requirements. A guarantee of quality, reliability and durability, once again Osburn clearly demonstrates its firm commitment to the environment to the delight of wood heating fans.

Discover the additional qualities of the Osburn Inspire wood stove

APPROVED FOR THE ISLAND OF MONTREAL

Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

100% of the last 12 product owners who have registered their warranty are satisfied with this product.



Additional information

Heating area

100 Ft2, 500 – 2
Maximum heat output

000 BTU/h (22.0 kW), 75
Fuel Type

Dry cordwood (16" recommended)
Overall firebox volume-ft³

2.4
EPA loading volume-ft³

1.95
Maximum burn time ()

8 h
77 % (LHV) (5)

Optimum overall efficiency (6)(7)
79 %

Optimum heat transfer efficiency (8)
76%

Average particulate emissions rate (9)
2.3 g/h

Average CO (10)
69 g/h

Combustion technology
Non-catalytic

High-efficiency certified appliance
Yes, EPA 2020 approved

Maximum log length
Loading over width

Chimney diameter
12'

Baffle type
C-Cast or equivalent

Approved for an alcove installation
Yes, with fresh air intake

Shipping Weight
537 lb (244 kg)

Door type
Ceramic glass

Glass surface – dimensions (Width X Height)
20 1/4" X 9 1/2"

Glass air-wash system
35 5/8"

Overall dimension (Width)
27 7/8''

Overall dimension (Depth)
24 1/4"

Door opening – dimension (Height)
8 3/8"

Door opening – dimension (Width)
20"

Firebox – dimension (Height)
11 3/4"

Firebox – dimension (Width)
21"

Firebox – dimension (Depth)
16 3/4"

Firebox lined with refractory bricks for better heat distribution
Pedestal

Steel thickness – body
3/16"

Steel thickness – top
5/16"

Easy-to-access ash drawer
Yes

USA standard (emissions)
EPA Method 28

Canadian Standard (emissions)
CSA B415.1-10

USA standard (safety)
UL 1482,UL 737

Canadian standard (safety)
ULC S627

Tested and listed as per applicable standards
Limited lifetime

Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
Single wall pipe

Double wall pipe
Clearance – back wall

14 ½"
6"

Clearance – corner
10"

7"
Clearance – side wall

17"
17"

16"
16"

Clearance – top (measured from the platform on which the appliance is installed)**
84"

84"
