MATRIX 2700 WOOD INSERT

$3,999.00

SKU: OB02700 Category: Tags: , ,

Description

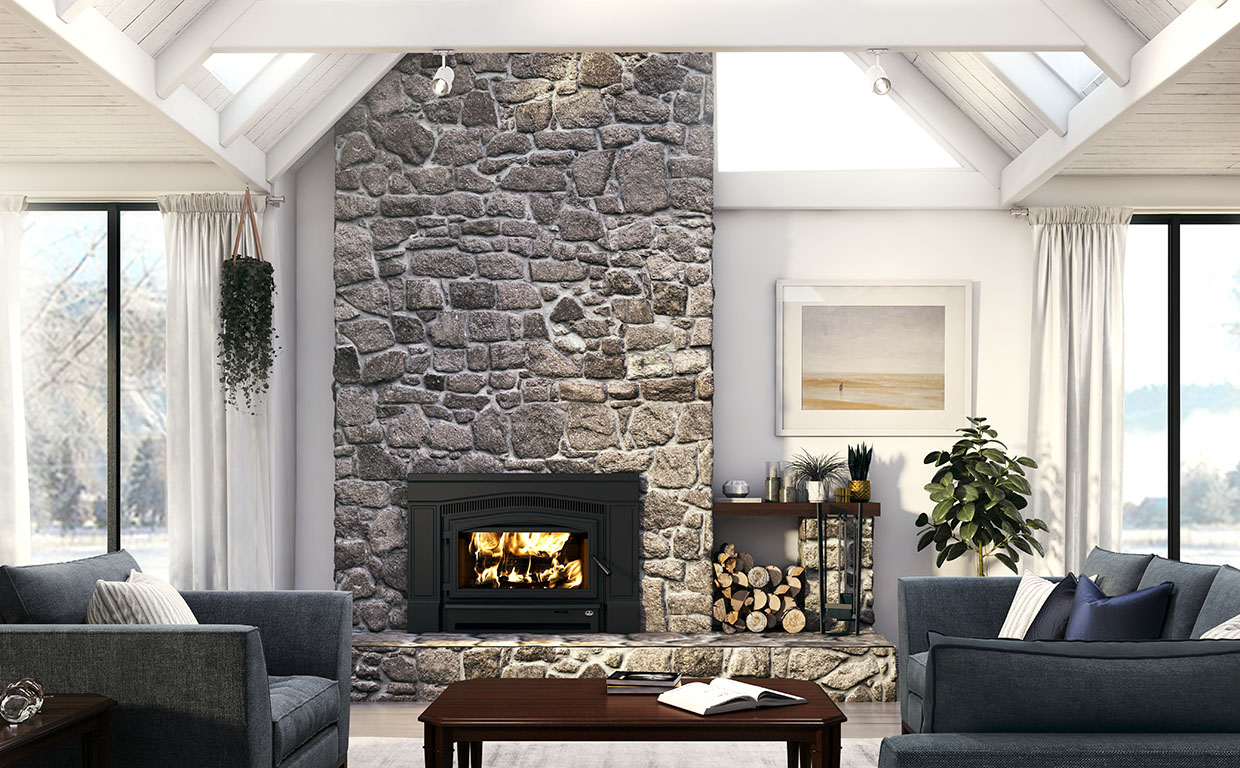

Inspired by nature, the Matrix 2700 insert is a fusion of traditional style and technological innovation. Located in the heart of your living space, the generous viewing area of the Matrix 2700 will invite you to sit back, relax and take in the calm and warmth of its flames. Eco-savvy consumers will appreciate its efficient combustion, quality performance and classic beauty.

This unit comes standard with cast iron faceplate and heat activated blower. Customize the look of this non-catalytic appliance by choosing from a black or brushed silver-plated door overlay and fire screen.

Discover the additional qualities of the Matrix 2700 wood insert

APPROVED FOR THE ISLAND OF MONTREAL

Government incentives may apply to this product.
LEARN MORE

*Any installation must be done according to the data and drawings detailed in the owner’s manual.

90% of the last 50 product owners who have registered their warranty are satisfied with this product.



Additional information

Heating area

200 Ft2, 750 – 2
Maximum heat output

000 BTU/h (23.4 kW), 80
Fuel Type

Dry cordwood (16" recommended)
Overall firebox volume-ft³

2.5
EPA loading volume-ft³

1.94
Maximum burn time ()

8 h
68 % (LHV) (5)

Optimum overall efficiency (6)(7)
70%

Optimum heat transfer efficiency (8)
68%

Average particulate emissions rate (9)
1.2 g/h

Average CO (10)
98 g/h

Combustion technology
Non-catalytic

High-efficiency certified appliance
Yes, EPA 2020 approved

Maximum log length
20"

Log positioning
Loading over width

Chimney diameter
6"

Type of chimney
15'

Baffle type
C-Cast or equivalent

Approved for a mobile home installation
No

Shipping Weight
535 lb (243kg)

Door type
Ceramic glass

Glass surface – dimensions (Width X Height)
24 3/8" X 12 5/8"

Glass air-wash system
176

Overall dimension (Height)
30 1/8"

Overall dimension (Width)
43 5/8"

Overall dimension (Depth)
27 1/4"

Door opening – dimension (Height)
10 1/2"

Door opening – dimension (Width)
25 3/8"

Firebox – dimension (Height)
12 3/8"

Firebox – dimension (Width)
22 5/8"

Firebox – dimension (Depth)
12 7/8"

Moulded refractory bricks
Yes

Steel thickness – body
3/16"

Fireplace opening – minimum (Height)
27 1/8"

Fireplace opening – minimum (Width)
31 3/4"

Fireplace opening – minimum (Depth)
22 1/8"

USA standard (emissions)
EPA

Canadian Standard (emissions)
CSA B415.1-10

USA standard (safety)
UL 1482,UL 737

Canadian standard (safety)
ULC S628

Tested and listed as per applicable standards
Limited lifetime

Minimum clearances to combustibles*(Data expressed in inches. 1 inch = 25.4 mm)
United-States

Clearance – top (measured from the platform on which the appliance is installed)**
84"

84"
9 1/2"

Clearance – combustible top mantle to unit
12'

12"
19"

Clearance – minimum floor protection in front of the appliance
18"

16"
